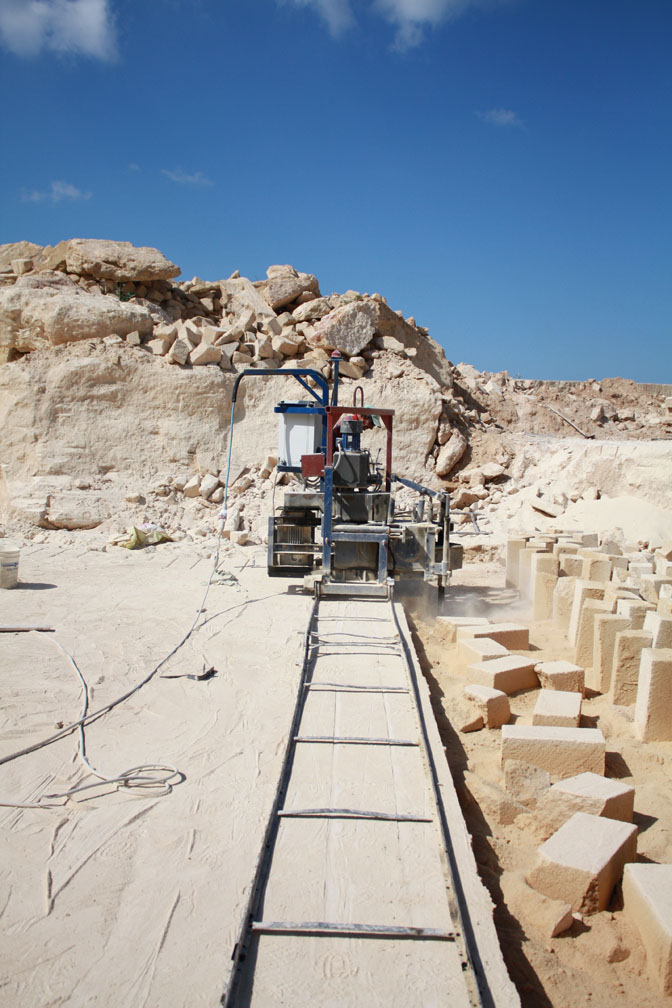

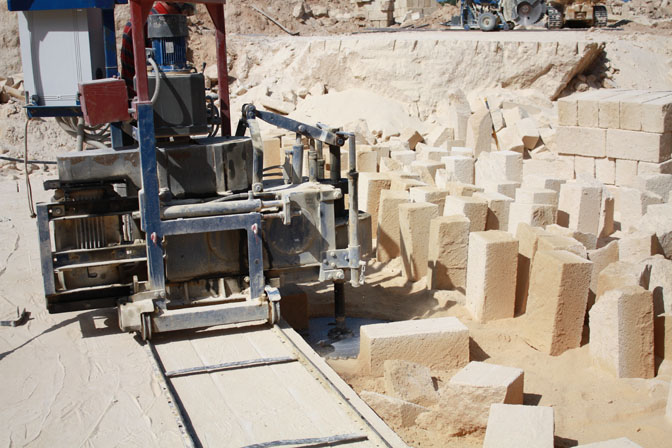

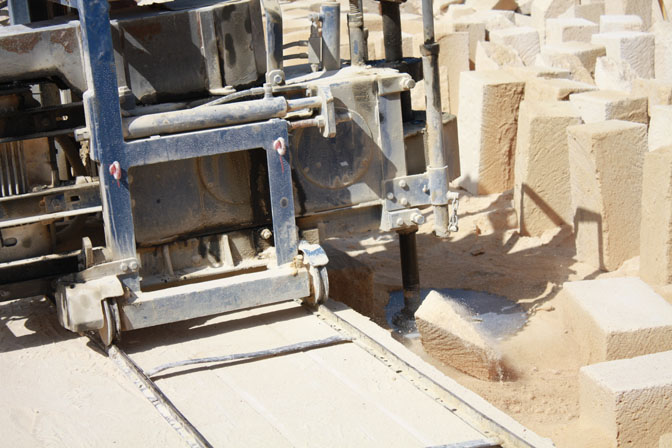

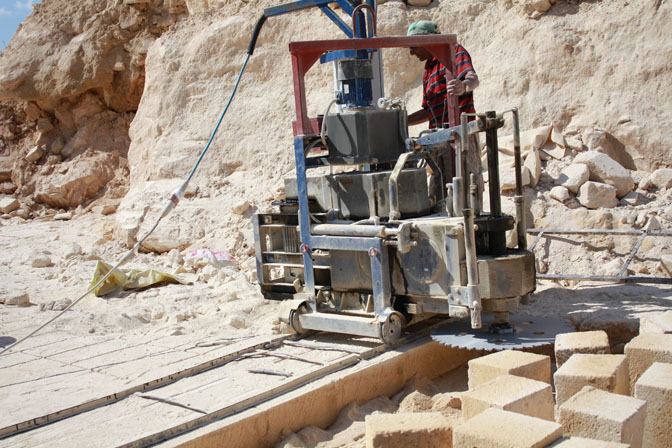

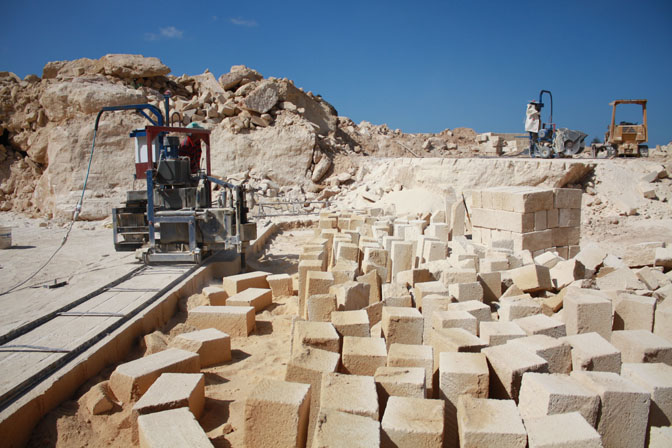

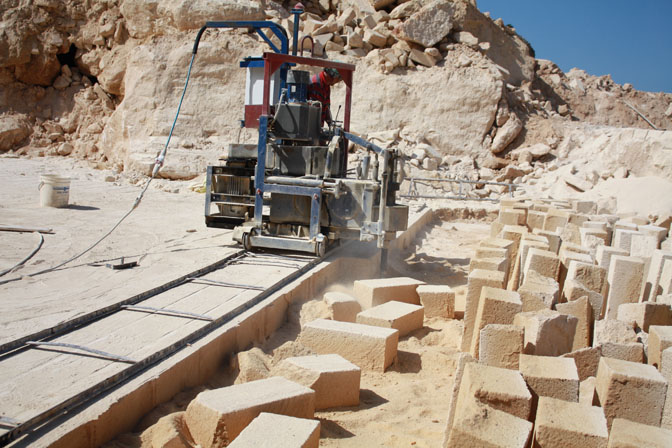

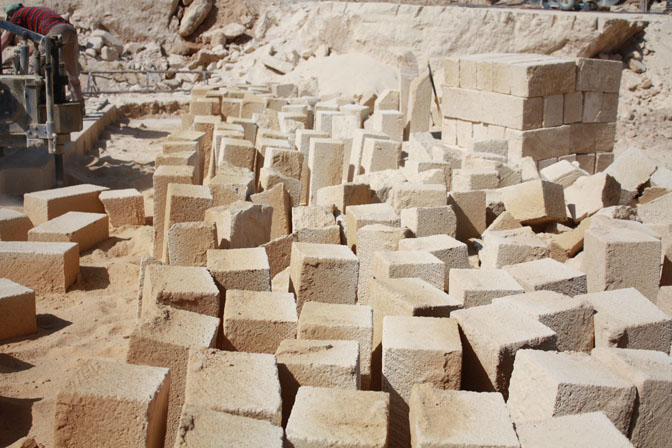

Proper to cut a horizontal furrow under the plan it extracts with a speed of cut from 0 ÷ 25 m/min.
Slide on binary type
T 45
Total power
Kw 24,6
Depth of Horizontal cut
max250mm.
Height cut (from the plan it extracts)
max. 300 mm.
Horizontal disk
f 700mm..
Recommended generator
KVA 40
Electric motors
- Horizontal cut kw 22
Type IP 55 Class F ŋ 0, 87÷ 0,92 V 380 50 Hz B3
- Advancement Kw1,5
Type IP 55 Class F ŋ 0, 75÷ 0,92 V 380 50 Hz B5.
- I install hydraulic Kw1,1
Type IP 55 Class F ŋ 0, 75÷ 0,92 V 380 50 Hz B5
Electric picture
With commands of driving to low tension as foreseen by the law
Opportunely proportionate and pulsating of march / single arrest for every motor.
Safety
The machine is provided of electric devices of block that make her/it sure and of acoustic and bright device that warns that the cars it is in movement.
And' provided of protections on all the mechanical organs in movement and protection on the disks up to maximally possible.
I install hydraulic
Pomp to gears. distributor to 2 elements
Brought 8 litri/1’
Pressure 100 ÷ 150 bar
Ability reservoir 40Lt.
ADVANCEMENT OF CUT
Hydraulic to varying course
independent operated through lever
inversion of march with point of madman
speed max. 40m/min. a vuoto
4 wheels engines
LOOM
It structures in steel on purpose studied for a' tall resistance, elettrosaldato. Translation cart
Horizontal loom through martinetto to double effect
And it flows on pads and adjustable guides to annul the game of usury.
Driving Horizontal cut through hydraulic martinetto to double effect integrated in a system of levers.
Measure and Mass
Width__1800________mm. ~
Lenght__1000________mm. ~
Height_____1650________mm. ~
Weigth_______1050________Kg. ~
Gives technical and characteristics can suffer variations
|
